Which Duct Insulation To Choose? 4mm vs 8mm vs 25mm from Elephant Duct

Choosing between Elephant Duct's 4mm, 8mm and 25mm ducting primarily boils down to one question: how much insulation does your project actually need? Get it wrong and you're either paying for performance you don't need, or leaving your system exposed to condensation and heat loss it can't handle. Here's how the Elephant Duct range performs across different insulation thicknesses, and how to pick the right one.

The Short Answer

If you need a quick steer: Asian Elephant (4mm) suits moderate insulation needs in standard domestic and light commercial settings. African Elephant (8mm) is the go-to for commercial and industrial runs where condensation control and thermal performance matter more. Woolly Mammoth (25mm) is for heavy-duty applications — exposed runs, extreme temperature differentials, or anywhere insulation failure isn't an option. The detail below explains why.

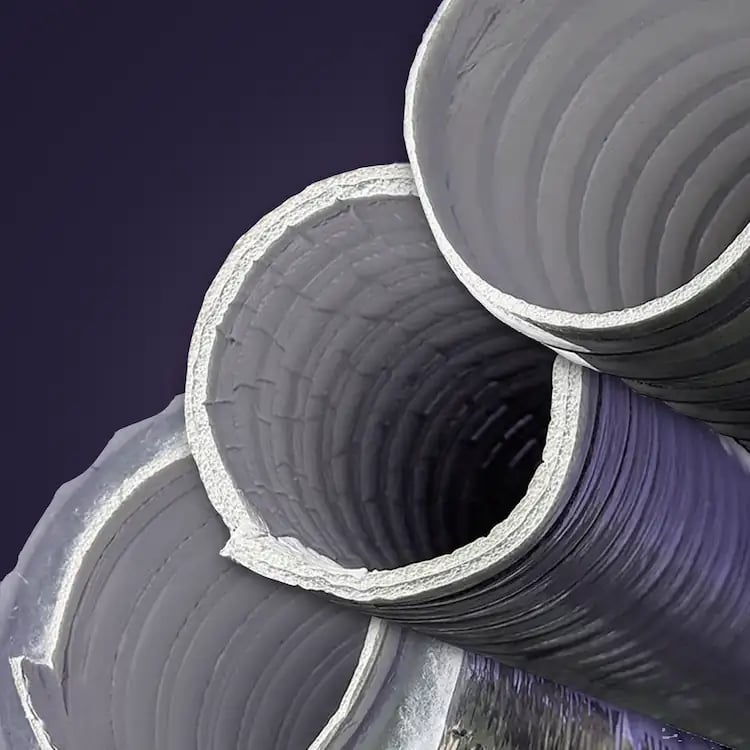

Asian Elephant (4mm) — Moderate Insulation

The Asian Elephant is Elephant Duct's lightest product in terms of thickness, but don't let that fool you into believing it's uninsulated. With 4mm of netted closed-cell polyethylene foam insulation around a semi-rigid, steel-helix-reinforced core, it's built for installs where thermal demands are modest — think standard domestic ventilation, MVHR runs within heated envelopes, or shorter commercial ducting where the temperature differential between the duct and its surroundings is small.

Don't mistake "moderate" for "basic." It still carries the full fire and hygiene specification of the range — it's simply insulated for jobs that don't need the thermal mass of the heavier options. And, unlike other flexible or rigid ducting brands, our lightest option still provides effective thermal insulation for a variety of situations.

African Elephant (8mm) — High Insulation

Step up to the African Elephant (8mm) and you're looking at Elephant Duct's most commonly specified option for commercial and industrial work. The extra insulation thickness earns its keep on longer runs, in unheated risers or plant rooms, and anywhere condensation risk is a genuine concern (cold supply air running through a warm ceiling void, for example).

This is usually the default recommendation where a specifier hasn't flagged extreme conditions but wants a safety margin above the entry-level option.

Woolly Mammoth (25mm) — Heavy Insulation

Elephant Duct's Woolly Mammoth (25mm) is the range's heavyweight, and it's named after this beast for a reason. Exposed external runs, large temperature swings between supply air and ambient conditions, or projects where condensation simply cannot be tolerated (data centres, food production, cold storage plant rooms) are where 25mm excels.

Arriving on-site pre-insulated is the Woolly Mammoth's biggest advantage over types of ducting. Where heavy rigid ducting must be effortfully lagged and insulative sleeves must be purchased separately, our 25mm product is ready to install from the moment you take it out the box.

Fire Safety and Core Performance Are the Same Across the Range

Whichever thickness you choose, you're not trading away safety or durability. All three products share the same core specification:

• Class B-s2, d0 (EN 13501-1:2019) fire ratings — which matters in fire-safety-critical buildings.
• An operating range of -20°C to +90°C and airflow velocities up to 20m/s.
• An antimicrobial, hygienic coating that resists mould and bacterial growth.
• The same multi-layer polyolefin construction with embedded steel-wire helix, giving a bending radius of roughly 1.2–1.8x the duct diameter.

Insulation thickness affects thermal performance and condensation resistance — not the fire safety or structural integrity of the duct.

Standards and guidance documents are periodically revised, so always verify current fire classifications against the latest published versions before specifying.

How to Choose the Right Duct Thickness

Three questions will usually settle it:

1. What's the temperature differential? Small differentials (duct and surroundings both roughly conditioned) suit 4mm. Larger differentials — unheated spaces, external runs — push you toward 8mm or 25mm.

2. Is condensation a real risk? If moisture dripping from ductwork would be a problem (over ceiling tiles, near electrics, in food-prep areas), don't cut corners on insulation.

3. Is the run exposed or protected? Ducting in a heated void has different needs to ducting crossing an unheated loft or running externally.

We'd love to hear from installers and specifiers on this one — if you've got a real-world example of choosing between thicknesses on a job (and how it played out), let us know and we'll look at featuring it here.

Get in Touch

Still weighing up 4mm, 8mm or 25mm for your project? Talk to the team at Elephant Duct and we'll help you spec the right insulation for the job, or browse the full range if you'd like to dig a little deeper.
